Quick Details

  • Condition: New
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Mainstay
  • Model Number: MIG200 pulse mig weiding machine
  • Wire Feeding Speed: 3--15m/min
  • Dimensions: 500*263*430mm
  • Weight: 25KG
  • Usage: Suit stainless steel,decoration,hardware and so on thin plate welding.
  • Voltage: AC220V±15% 1PH
  • Power(W): 6.4KVA
  • Certification: CE
  • Warranty: One Year
  • Product Name: MIG200 Inverter Pulse Mig Welding Machine
  • Rated output voltage: 17--24V
  • Efficiency: 85%
  • No-load Loss: 40W
  • Outer covering protection rank: IP21
  • Power factor: 0.93cos
  • Insulation grade: B
  • Welding wire scope: 0.6--0.8mm
  • Welding Thickness: 0.4-5mm
  • OEM: Available

Packaging & Delivery

Packaging Details Standard Carton With Foamed Plastic or According to Client's detail request.
Delivery Time Within 15 to 45 days after receipt of 30% deposit payment.

Specifications

1.MIG200 pulse mig welding machine
2.Input Voltage:220V 1PH
3.Wire feed speed:3-15m/min
4.Efficiency:85%
5.No-load loss:40W

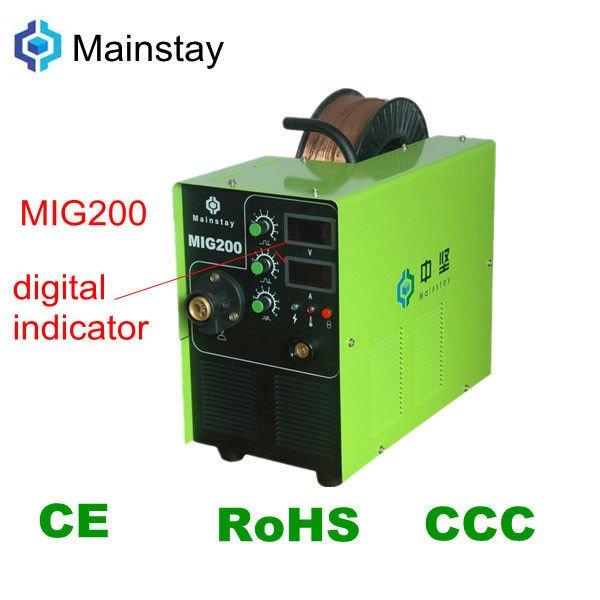

MIG200 Inverter Pulse Mig Welding Machine

MIG200/MIG250/MIG350/MIG500/MIG630









Features:

  • Adpot  IGBT inverter technology,energy saving, power frequency, no noise.
  • Easy to operate, conveninet, high arc striking success rate.
  • It can carry out continuous welding and disconnected welding, and continuously provide wire feeding without interruption.
  • Little welding spatter, deep welding pool, stable welding, good welding surface, good heat resistance and crack resistance, small distortion when heated.
  • Be applicable for low carbon steel, high strength steel, alloy steel, soft steel, ect.
  • Be able to match various wire.



Applications:
MIG200 Inverter Pulse Mig Welding Machine is widely used in  low carbon steel, high strength steel, alloy steel, soft steel, ect.





Stand accessores:
MB 15AK 200A 3M Welding Torch ,    3M Earth clamp , AC220V CO2 watch. +1m=RMB20





Main Technical Parameters

ITEM/MODEL

MIG200S

Input  Voltage(V)

AC220V±15% 1PH

Pulse Frequency(Hz)

50/60Hz

Rated input Current(A)

25

Output Current Adjustment(A)

60--200

Rated Output Voltage(V)

17--24

Wire feed speed (m/min)

3--15

Duty Cycle (%)

60%

Efficiency (%)

85

Insulation Grade

B

Outer Covering Protection Rank

IP21

Power Factor(cos)

0.93

Weight(KG)

25

Outlook Size(mm)

500*263*430

No-load Loss(W)

40

Welding wire scope(mm)

0.8--1.2





OEM
As a professional supplier of  Mig Welding Machine ,we have many years' experience on OEM,we can make the arc welding machine according to your detail requirements,such as color,design,logo and even the letters used on surface.We also can make the cable as long as you like.




Our Service:
1. OEM and ODM offered to customers
2.Discounts are offered based on large quantities
3.Certificates:CE,ROHS,ISO9001:2008, if you need more cetification, please contact us.
4.Your enquiry will be replied in 12 hours

Trade Terms:
1.MOQ:50pcs
2.Shipping terms:FOB Shenzhen,can be negotiated
3.Payment terms:T/T,Escrow,L/C, Western Union
4.Package:Standard package or as to client's request
5.Lead Time:10-30 days upon received deposit.
